Isometrics for Presentations

An isometric is a parallel projection: the three axes are drawn at equal angles and the lines never converge. That is the whole point of it. Because there are no vanishing points, distances along the axes stay measurable and every part of the drawing reads at the same scale. A perspective does the opposite. It mimics how the eye sees, so it feels real and distorts as it recedes. Use a perspective when the goal is to make someone feel the space. Use an isometric when the goal is to make someone understand a system, a sequence, or an assembly. Exploded assemblies, phasing diagrams, circulation studies, and building systems explanations are all clearer isometric. On a presentation board the two work together, with the perspective carrying the feeling and the isometric carrying the explanation.

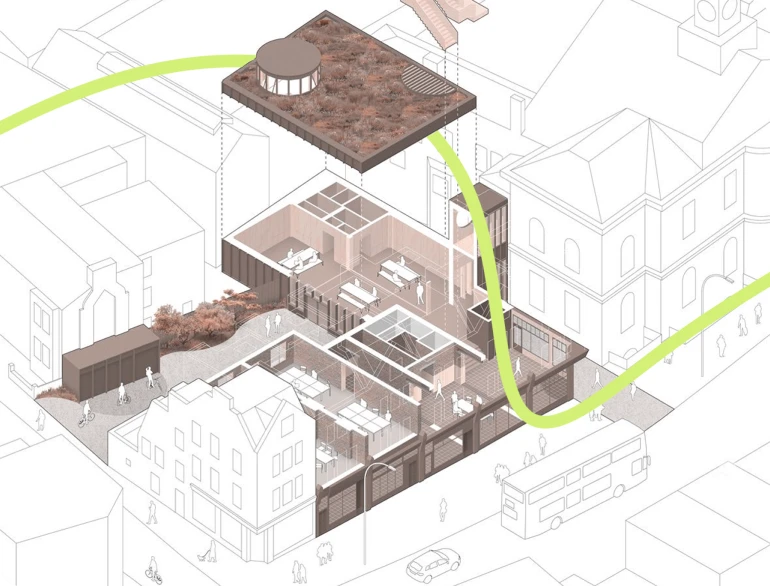

Five come up repeatedly. Exploded axonometrics, which pull a building apart by floor or by system to show how it assembles. Cutaway isometrics, which slice into a volume to reveal an interior without losing the whole. Systems diagrams, which isolate structure, circulation, or mechanical distribution from everything else. Phasing sequences, which show a construction or renovation staged over time. And detail isometrics, which explain a junction that a two-dimensional section cannot. Each has a different reader. An exploded axonometric is usually for a client or a jury. A detail isometric is for a contractor, and the two are drawn nothing alike. Naming the reader before drawing decides the line weights, the labeling, and how much gets left out. That decision is most of the craft in this kind of drawing.

Yes, and starting from the model is the right way when there is one. Revit, ArchiCAD, Rhino, SketchUp and Vectorworks all produce an axonometric view directly, which becomes the base geometry. The drawing work happens after that. Raw model output is technically correct and visually flat. The view gets exported into Illustrator, or refined in the modeling software, to control line weights, poché, transparency, color and annotation. That step is what turns a view into a drawing. Where the model has more information than the diagram needs, elements are hidden or simplified rather than drawn over. If there is no model, the isometric is built from plans and sections instead. That takes longer, and it is entirely normal on an existing building nobody ever modeled. Say which situation you are in when you ask for a price.

By deciding what the drawing is not about, first. Legibility in an axonometric comes from subtraction rather than from detail. The techniques are consistent. A clear line weight hierarchy, poché or tone on cut elements, and transparency on what is secondary. Color is reserved for the one system being explained, and everything irrelevant is simply removed. Labels go outside the drawing with leaders rather than sitting on top of it. Choosing the viewing angle carefully is worth more than any of that, because the wrong angle hides the thing the drawing exists to show. Conventions for line weight and annotation in U.S. practice follow the National CAD Standard, maintained by the National Institute of Building Sciences. A drawing that respects them reads correctly to anyone in the industry, including a reviewer who has never seen your work before.

As the drawing that does the explaining while the render does the persuading. On a competition or jury board, an exploded axonometric communicates the whole design idea in a single image. That is what a reviewer spending a minute on your board actually absorbs. In a client meeting, a phasing isometric answers the question a construction schedule cannot: what the building looks like at each stage. In a public or community meeting, a massing axonometric shows a proposal against its context without the flattery a rendered perspective carries. Internally, the same drawings are how a team argues about a system. What they share is that they are drawn to answer one question. An isometric that tries to show everything ends up showing nothing in particular, which is the failure mode of most of them. Decide the question first.
